CAMERAS

ReDone | Alexa | PHANTOM | Blackmagic | SONY | Moco | QTAKE

REDONE

RED WEAPON (Carbon)


Features：
1.Proress444XQ @2K
2.Proress422HQ @4K
3.Manufactured with ultra-lightweight carbon fiber
4.Support the use of anamorphic lenses
Resolution :
RAW -
Max up to 6K
MOV -
Proress444XQ @2K
Proress422HQ @4K
Frame Rate :
6K 100fps
5K 120fps
4K 150fps
3K 200fps
2K 300fps
Formats :
R3D(REDCODE)
MOV(Apple Prores)

Official Website：
http://www.red.com/products/weapon-dragon
PDF Download：
器材海報.pdf

REDONE

EPIC DRAGON

Features :
1. 240 fps at 2K Full Frame (2048 x 1080),
  300 fps at 2K 2.4:1 (2048 x 864)
2. HDRx
3. Lightweight
4. Upgrade EPIC camera to DRAGON
5. anamorphic lenses Supported
Resolution :
5568x3132(6K HD)
4800x2700(5K HD)
3840x2160(4K HD)
1920x1080(2K HD)
Frame Rate :
6K 83fps
5K 95fps
4K 120fps
2K 240fps
Formats :
R3D(REDCODE)

Official Website：
http://www.red.com/products/epic-dragon
PDF DOWNLOAD：
器材海報.pdf

ALEXA 35

Features：
1. Industry-Leading image quality at native 4K and 120 fps
2. 17 stops of dynamic range with filmic highlight roll-off
3. "High ISO" up to EI 6400 and Enhanced Sensitivity Mode
4. Richer color rendition through REVEAL Color Science
5. creative control via ARRI Textures and wide lens choice
Frame Rate and Resoultion :

ARRIRAW 4.6K 3:2 Open Gate: 35 / 75 fps
ARRIRAW 4.6K 16:9 - 4.6K: 45 / 75 fps
ARRIRAW 4K 16:9 - 4K: 55 / 120 fps
ARRIRAW 4K 2:1 - 4K: 65 / 120 fps
ARRIRAW 3.3K 6:5 - 3.3K: 55 / 100 fps
ARRIRAW 3K 1:1 - 3K: 55 / 100 fps
Apple ProRes 4.6K 3:2 Open Gate: 60 / 60 fps
Apple ProRes 4.6K 16:9 - 4K: 75 / 75 fps
Apple ProRes 4K 16:9 - 4K: 100 / 100 fps
Apple ProRes 4K 16:9 - UHD: 120 / 120 fps
Apple ProRes 4K 16:9 - 2K: 120 / 120 fp
Apple ProRes 4K 16:9 - HD: 120 / 120 fps
Apple ProRes 4K 2:1 - 4K: 120 / 120 fps
Apple ProRes 3.3K 6:5 - 3.3K: 75 / 75 fps
Apple ProRes 3.3K 6:5 - 4K 2.39:1 Ana. 2x: 90 / 90 fps
Apple ProRes 3K 1:1 - 3K: 90 / 90 fps
Apple ProRes 3K 1:1 - 3.8K 2:1 Ana. 2x: 100 / 100 fps
Apple ProRes 2.7K 8:9 - UHD 16:9 Ana. 2x: 100 / 100fps
Apple ProRes 2K 16:9 S16 - 2K: 120 / 120 fps
(Compact Drive 1TB / 2TB)
Format :
ARRIRAW
MOV (Apple Prores)

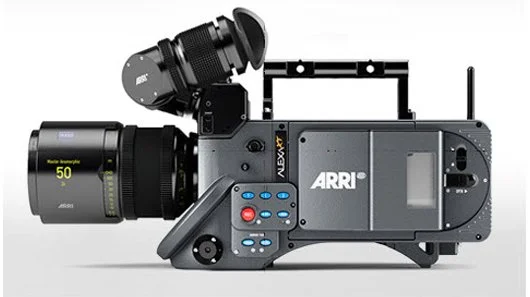

ALEXA XT

Features :
1. The most frequently used ,ARRIRAW data
  can be recorded directly in XT
2. ARRIRAW120fps@2880x1620
3. Recording clips in ProRes or DNxHD format
4. 4:3 CMOS,Support the use of anamorphic
  lenses
Resolution :
ARRIRAW:
2880x2160 (4:3 Full)
2880x1620 (16:9)
MOV:
1920x1080 (16:9 HD)
2048x1152 (16:9 2K)
2048x1536 (4:3 2K)

Frame Rate :
120fps(16:9)
Formats :
ARRIRAW
MOV(Apple Prores)

ALEXA XT PLUS

Features :
1. ARRIRAW 120fps@2880 x 1620
2. Recording clips in ProRes or DNxHD format
3. 4:3 CMOS, Support the use of anamorphic
  lenses
4. Support for ARRI and cmotion cvolution
  wireless lens control systems
5. Optional accessory Wireless Compact Unit
  WCU-4 for wireless remote control
6. 3414 x 2198 used for ARRIRAW Open Gate
Frame Rate :
120fps(16:9)
Formats :
ARRIRAW
MOV(Apple Prores)
Resolution :
ARRIRAW:
OPEN GATE 3414 x 2198
2880x2160 (4:3 Full)
2880x1620 (16:9)
MOV:
1920x1080 (16:9 HD)
2048x1152 (16:9 2K)
2048x1536 (4:3 2K)

ALEXA MINI

Features :
1. UHD 4K MOV 60fps
2. 2K 200fps MOV
3. Built-in motorized FSND filters,
  (IRND 0.6, 1.2, 2.1)
4. Wi-Fi remote control
5. Light enough to be comfortably held at
  arm's length in a hand rig
Frame Rate :
2K 200fps
4K 60fps
Formats :
ARRIRAW
MOV(Apple Prores)
Resolution :
ARRIRAW:
2.8K 16:9 2880x1620
2.8K 4:3 2880x2160
MOV:
HD 1920x1080
2K 16:9 2048x1152
2K 4:3 2048x1536
3.2K 3200x1800
4K UHD 3840x2160

ARRI AMIRA

Features :
1. Prores 4444 200fps@2048x1152
2. Max frame rates up to 200fps
3. Features the same sensor and exceptional
  image quality as the ARRI ALEXA
4. High quality audio recording
5. Built-in motorized FSND filters,
  (IRND 0.6, 1.2, 2.1)
6. Applying 3D LUTs and Color transforms
  to Viewports
7. UHD 4K MOV 60fps
Resolution :
2048x1152
Frame Rate :
2K 200fps
4K 60fps
Formats :
MOV(Apple Prores)

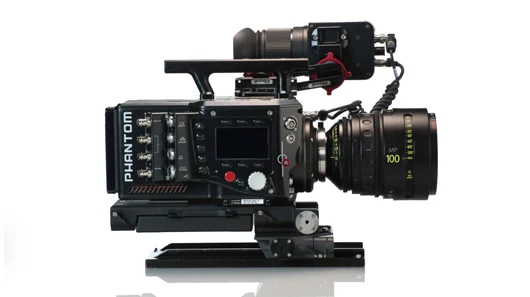

PHANTOM FLEX 4K

Features :
1. Supports up to 4K resolution at up to
  1,000 frames-per-second
2. Lower image noise and a higher dynamic
  range than the Flex 2K
3. Supporting dual-link 4K video and
  simultaneous live monitoring / playback
4. Convenient and Intuitive Camera Controls
Frame Rate :
4K 1000fps
2K 2000fps
Resolution :
4096 x 2160
2048 x 1080
Formats :
CINE
(PHANTOM RAW)

Official Website：
http://www.phantomflexcamera.com/flex4k.html
PDF DOWNLOAD：
器材海報.pdf

Blackmagic
BMPCC 6K
BMPCC 6K Pro

Features :
1.Super 35mm high resolution HDR sensor
2.13 Stops of dynamic range
3.Dual native ISO up to 25,600

Frame Rate & Resolution :

6144 x 3456 (6K) : 23.98p/ 24p/ 29.97p/ 30p/ 50p
6144 x 2560 (6K 2.4:1): 23.98p/ 24p/ 29.97p/ 30p/ 59.94p/ 60p
5744 x 3024 (5.7K 17:9) : 23.98p/ 24p/ 29.97p/ 30p/ 59.94p/ 60p
4096×2160 (4K DCI): 23.98p/ 24p/ 29.97p/ 30p/ 59.94p/ 60p
3840×2160 (UHD): 23.98p/ 24p/ 29.97p/ 30p/ 59.94p/ 60p
3728 x 3104 (3.7K 6:5 anamorphic) : 23.98p/ 24p/ 29.97p/ 30p/ 59.94p/ 60p
2868 x 1512 (2.8K 17:9) : 23.98p/ 24p/ 29.97p/ 30p/ 59.94p/ 60p
1920×1080 (FHD): 23.98p/ 24p/ 29.97p/ 30p/ 59.94p/ 60p
Formats :
BRAW(RAW)
MOV

SONY FS3

Features :
1.Full-frame performance with high sensitivity and wide dynamic range
2.High performance BIONZ XR image-processing engine
3.Cinematic colour science with S-Cinetone™

Frame Rate & Resolution :
XAVC HS：
(XAVC HS 4K)：3,840 x 2,160/119.88p、100p、59.94p、50p、23.98p
XAVC S：
(XAVC S 4K)：3,840 x 2,160/119.88p、100p、59.94p、50p、29.97p、25p、23.98p
(XAVC S-I HD)：1,920 x 1,080/59.94p、50p、29.97p、25p、23.98p
XAVC S-I：
(XAVC S-I 4K)：3,840 x 2,160/59.94p、50p、29.97p、25p、23.98p
(XAVC S-I HD)：1,920 x 1,080/59.94p、50p、29.97p、25p、23.98p
Formats :
MP4


SONY A7S3

Features :
1.Full-frame performance with high sensitivity and wide dynamic range
2.15-stop wide dynamic range
3.Expanded ISO up to 409,600

Frame rat：e & Resolution :
XAVC HS：
(XAVC HS 4K)：3,840 x 2,160/119.88p、100p、59.94p、50p、23.98p
XAVC S：
(XAVC S 4K)：3,840 x 2,160/119.88p、100p、59.94p、50p、29.97p、25p、23.98p
(XAVC S-I HD)：1,920 x 1,080/59.94p、50p、29.97p、25p、23.98p
XAVC S-I：
(XAVC S-I 4K)：3,840 x 2,160/59.94p、50p、29.97p、25p、23.98p
(XAVC S-I HD)：1,920 x 1,080/59.94p、50p、29.97p、25p、23.98p
Formats :
MP4


MOCO

Since 2001,we offer a award winning MILO long arm motion control rig and flair system.It’s a portable,precise tool to provide an accurate and repeatable camera movement,camera path even can easily export to and import form a 3D software data.With two optional extension arms,MILO gives you 20 meters travel distance maximum along the rail,12 meters from left to right,and 6 meters above ground level.



We also have:
- Motion control operation crew
- Optional long-arm kits
- Total 9 meters precision rail(n three poeces)
- Mitichell S35 camera with 4 Canon BNCR lens
- Exchangeable Mount and connector for Arri 435
- DPS video system for pre-composite on set
- An model mover can synchronize with MILO by flair

Moco Reel：
https://vimeo.com/8210236

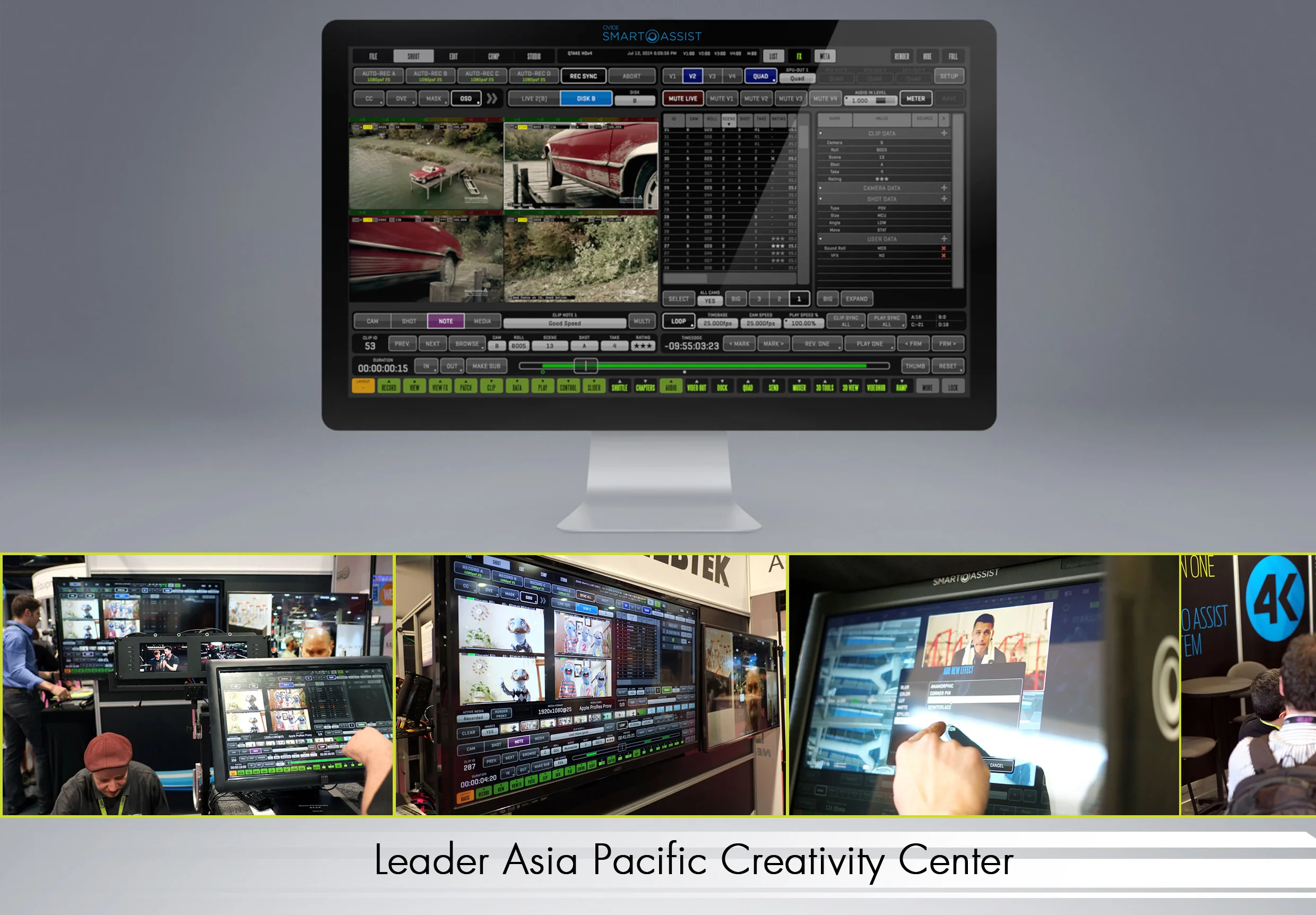

QTAKE HDX4

QTAKE is an advanced software application designed and developed for video assist professionals. It is used to log, capture, playback, edit and process video output of any camera.

This powerful, but easy to learn system, integrates every aspect of modern video assist into the single solution. Extensive logging capabilities, rapid shot selection with tree-based visual browser, simple and intuitive non-linear editor, media import and export, realtime overlay with blending, keying and wipe… and much more.

QTAKE HDx4 can record and playback 4 cameras in full HD.
